This guide provides a general installation procedure for electric swing gate openers. It is suitable for most residential and light commercial gate automation systems, including single-leaf and double-leaf swing gates.

Proper installation ensures safe operation, stable performance, and long service life of the gate automation system.

1. System Overview

A typical swing gate opener system includes the following main components:

 · Motor Unit (Actuator) – Drives the opening and closing movement of the gate

 · Rear Mounting Bracket (Post Bracket) – Fixed on the gate post or pillar

 · Front Mounting Bracket (Gate Bracket) – Fixed on the gate leaf

 · Drive Arm / Telescopic Arm – Connects the motor to the gate structure

 · Control Unit (Control Box) – Manages motor operation and safety functions

 · Power Cable – Supplies electrical power to the system

These components work together to convert motor force into controlled and stable gate movement.

2. Pre-Installation Requirements

Before installation, ensure the following conditions are met:

 · The gate moves smoothly in manual operation without resistance or jamming

 · Hinges are properly aligned and securely fixed

 · The gate structure is stable and free from deformation

 · Suitable power supply is available (typically 220V AC or 24V DC systems)

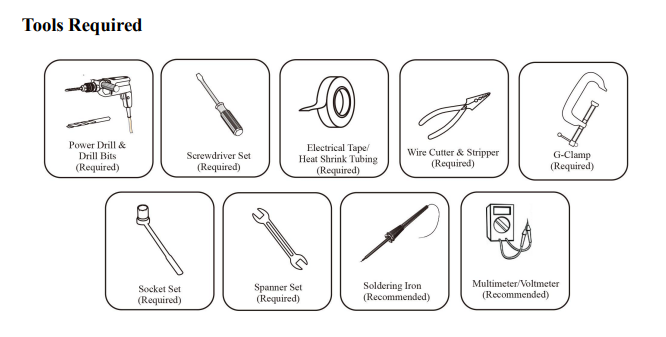

 · Required tools are prepared (drill, wrench, level gauge, fasteners, etc.)

Important: A poorly balanced gate will significantly reduce motor performance and lifespan.

3. Mechanical Installation Steps

3.1 Install Rear Mounting Bracket (Post Side)

Fix the rear bracket onto the gate post or pillar.

Ensure:

 · The bracket is perfectly level

 · Alignment matches the gate hinge axis

 · The bracket is firmly secured using bolts or welding

3.2 Install Front Mounting Bracket (Gate Side)

Attach the front bracket to the gate leaf.

Ensure:

 · Correct positioning based on the desired opening angle

 · No obstruction during gate movement

 · Proper alignment with the rear bracket

3.3 Install Drive Arm / Telescopic Arm

Connect the drive arm between the two brackets:

 · One end connects to the rear bracket (post side)

 · The other end connects to the front bracket (gate side)

Make sure all pins, bolts, and locking clips are fully secured and tightened.

3.4 Install Motor Unit

Mount the motor onto the drive arm system.

Check the following:

 · Motor is installed in the correct opening direction

 · Movement is smooth without mechanical interference

 · All joints are properly locked and fixed

4. Manual Release Function (Emergency Operation)

Most swing gate openers include a manual release system for emergency or maintenance use.

How to operate manual release:

1. Insert the provided release key or spanner
2. Unlock the motor clutch mechanism
3. Disengage the motor from the gate system
4. Manually open or close the gate

 This function is essential during power failure or system maintenance.

5. Electrical Connection

Connect the system according to the control unit wiring diagram.

Ensure:

 · Correct voltage compatibility

 · Secure grounding connection

 · Waterproof protection for outdoor installations

 · Proper connection between motor, control board, and accessories

Optional accessories may include:

 · Safety photocells (anti-pinch sensors)

 · Remote control receiver

 · Keypad or access control system

 · Warning light system

6. System Testing and Adjustment

After installation:

 · Power on the system and test operation

 · Verify correct opening and closing direction

 · Adjust travel limits (mechanical or electronic)

 · Ensure smooth and quiet operation

 · Test safety features such as obstacle detection (if available)

7. Safety Considerations

 · Do not operate the system if the gate is unstable or misaligned

 · Ensure all mounting points are tightly secured

 · Keep the gate movement area clear during operation

 · Regularly inspect brackets, arms, and motor connections

 · Follow all local electrical safety regulations

8. Conclusion

A swing gate opener system provides reliable automation when installed correctly. Proper alignment, secure mounting, and correct electrical wiring are essential for safe, stable, and long-term operation.

For best performance and safety, professional installation is strongly recommended.
