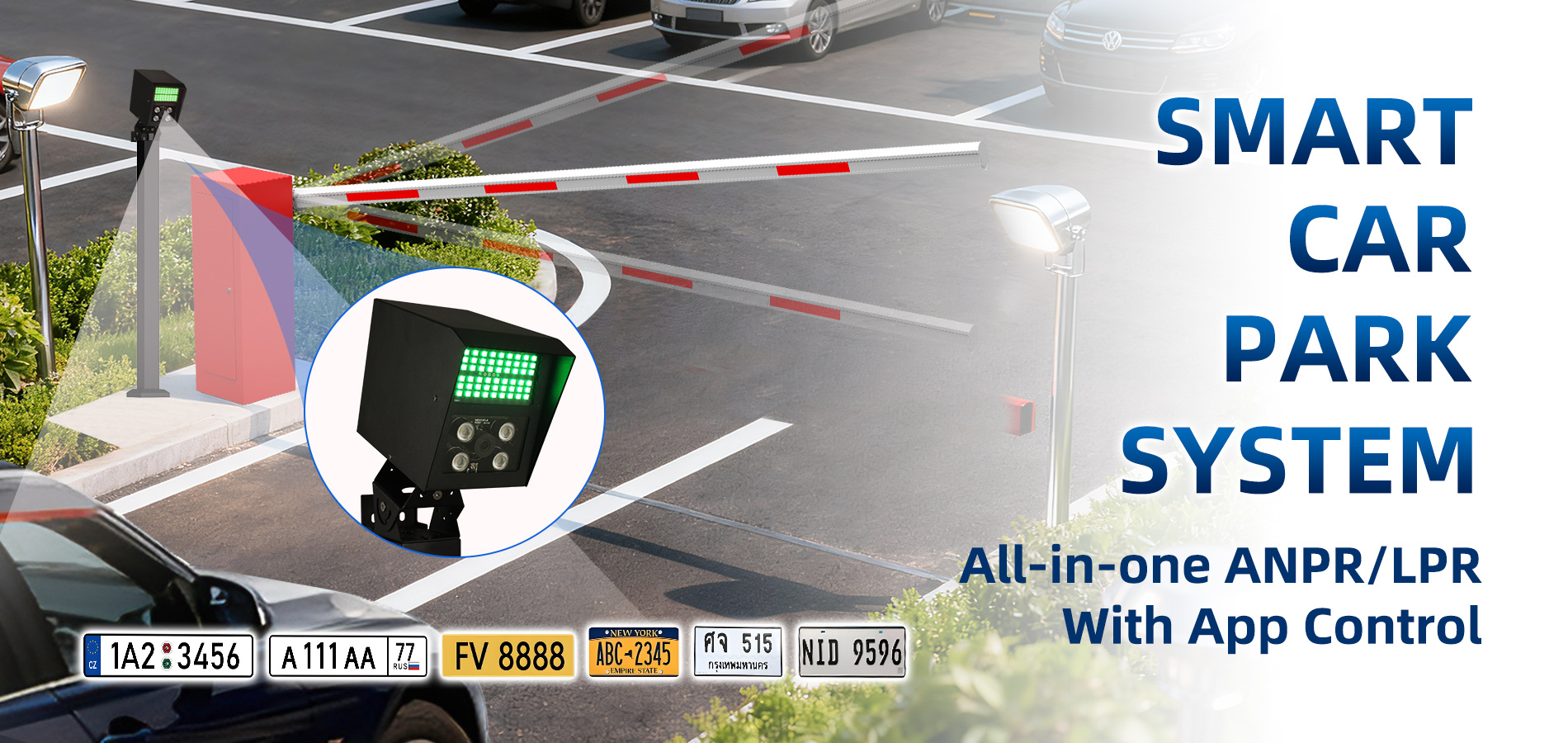

In the realm of smart parking and access control, integration and ease of operation are the core demands of modern users. Traditional solutions often require servers, complex wiring, and multiple system interfaces, resulting in high costs and challenging maintenance. JUJIANG GIANT introduces the WHDZ-220V Automatic Boom Barrier with License Plate Recognition (LPR), seamlessly connected with the X-HOUSE mobile APP, delivering a fully smart, mobile-first management experience from installation to daily operation.

1. Ultimate Convenience: Mobile APP-Based Lightweight Management

Full mobile control, no server required

  Through the X-HOUSE mobile APP, users can add and bind the LPR device, completing all management steps without relying on a computer or server. Barrier or electric gate control is simple—one-click via Bluetooth, anytime, anywhere.

Flexible vehicle access management

  Whitelist authorization, monthly passes, and high-frequency operations can be managed directly on the mobile app, with customizable validity periods, including permanent or temporary access. This provides unprecedented flexibility for property managers and residents.

Offline stability, no internet required

  The LPR camera operates independently, recognizing vehicles, checking access rights, and controlling the barrier offline. RF signal control eliminates wiring, reducing installation costs and complexity—perfect for retrofit projects or areas where wiring is challenging.

Flexible installation

  Supports wall-mounted or pole-mounted setups, adapting to courtyards, residential entrances, small parking lots, commercial streets, and more. Installation goes exactly where you need it.

2. Superior Recognition: 4MP Camera + 8th Gen Algorithm Recognition

High-definition imaging

  Equipped with a 4MP starlight CMOS sensor (2560×1440), image clarity is over 80% higher than typical 2MP cameras. Color imaging works reliably even at 0.1LUX, while intelligent ISP ensures night, backlight, and complex-lighting conditions are captured accurately.

Advanced algorithm recognitionr

 · Mainstream plate recognition ≥97%

 · Unregistered vehicle detection ≥99%

 · Anti-fraud plate verification ≥99%

 · Handles angles up to 65° horizontally and 60° vertically, with capture rates >99% and recognition rates >97%. Detection distance: 2–12m; vehicle speed up to 45 km/h.

Global license plate coverage

  Supports Taiwan, Brazil, Singapore, Vietnam, Malaysia, Europe, Thailand, Hong Kong, Macao, Chile, Colombia, South Africa, Dubai, and more. Captures plate number, color, type, vehicle model, make, and color—ideal for detailed analytics.

3. Industrial-Grade Reliability

Rugged, wide-temperature design

  IP65-rated, dustproof, waterproof, and operable from -30°C to +75°C. Reliable performance in extreme climates.

Rich interfaces & strong anti-interference

  4 inputs, 2 outputs, 2 RS485, USB, Ethernet. Surge protection up to 6KV, static protection 6–8KV. Stable operation even in strong electromagnetic environments.

Low power consumption, long lifespan

  Powered by 12V DC, ≤4W consumption, energy-efficient, and minimal heat generation.

4. Intelligent Management

Offline self-networking

  Cameras form a self-network, enabling parking fee management, whitelist/blacklist control, and offline operation—no server or cloud required. Customizable billing by vehicle type, time, count, period, or tier.

Anti-fraud & whitelist strategies

  Accurate and fuzzy whitelist matching, dual-feature verification (plate + vehicle), prevents fake, cloned, or smartphone-captured plates. Adjustable anti-capture filters and interval settings reduce false triggers.

Multi-device collaboration

  Supports master-slave deployment for large or wide entrances, eliminating recognition blind spots.

5. Easy Deployment & Maintenance

Visual and simple setup

  Mobile APP sets recognition zones and capture modes; one-click restore simplifies configuration for non-professional users. Two capture modes: trigger-based or recognition-zone-based.

Quick maintenance

  RESET button: short press restores IP/password, long press resets factory settings. USB supports batch whitelist import.

Status visualization

  Dual indicators for power and operation; real-time online status and license plate sync visible on mobile APP. Faults are easy to detect.

6. Open & Compatible

SDK & protocol support

  Provides SDKs for Windows, Linux, and Android supporting VB, C#, C++, and standard protocols like TCP, HTTP, MQTT, ONVIF, and RTSP for easy integration with third-party or custom platforms.

Reliable data push

  HTTP push with offline caching ensures no data loss; records remain complete and traceable.

7. Applications: From Small Courtyards to Large Parking Lots

Suitable for:

 · Residential entrances & private gates

 · Commercial parking with monthly passes

 · Highways, EV charging stations, unattended car washes, auto dealerships

 · International projects with multi-plate recognition needs

Ideal for high-traffic, revenue-generating parking operations or global cross-border project

Conclusion

The JUJIANG GIANT WHDZ-220V, paired with X-HOUSE mobile APP, delivers a seamless, “tap-to-open” experience. Industrial-grade hardware, advanced recognition algorithms, and open compatibility set a new standard for smart access control. Reduce costs, improve efficiency, and boost revenue with this intelligen
