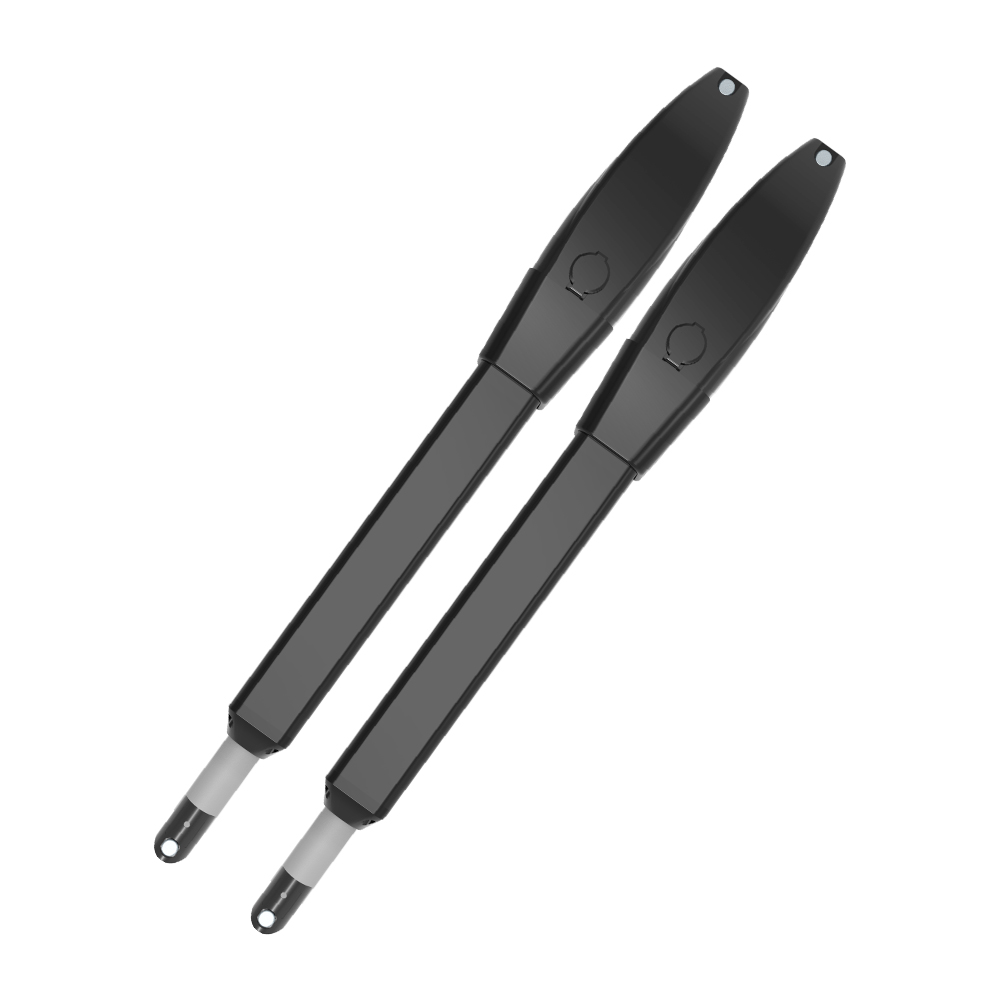

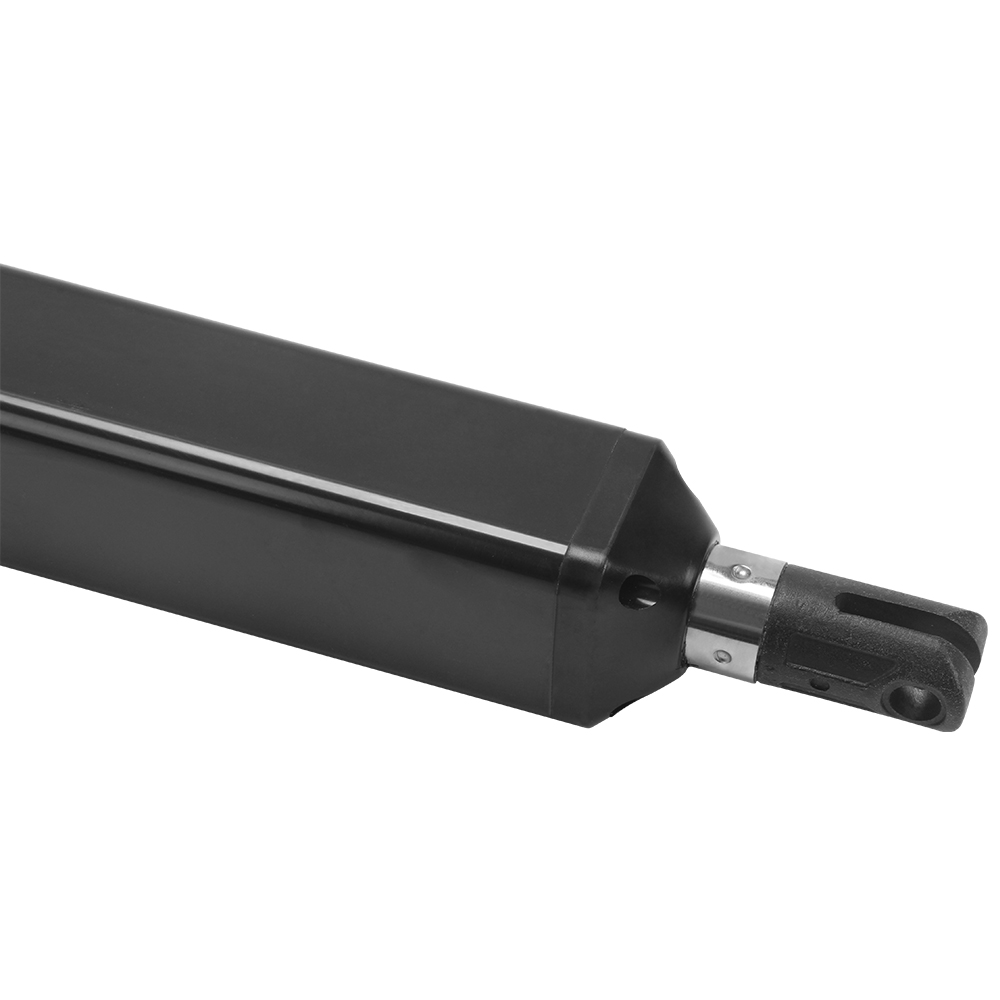

DC24V solar power arm actuator swing gate opener with max single leaf weight 300kg.

  • Model:

    PKM-C026
  • Features
  • Specs


New Arm Actuator Auto Swing Gate Opener Swing Automatic Gate Operator





Features



1.Worm gear provides durability and silence in motor operation.

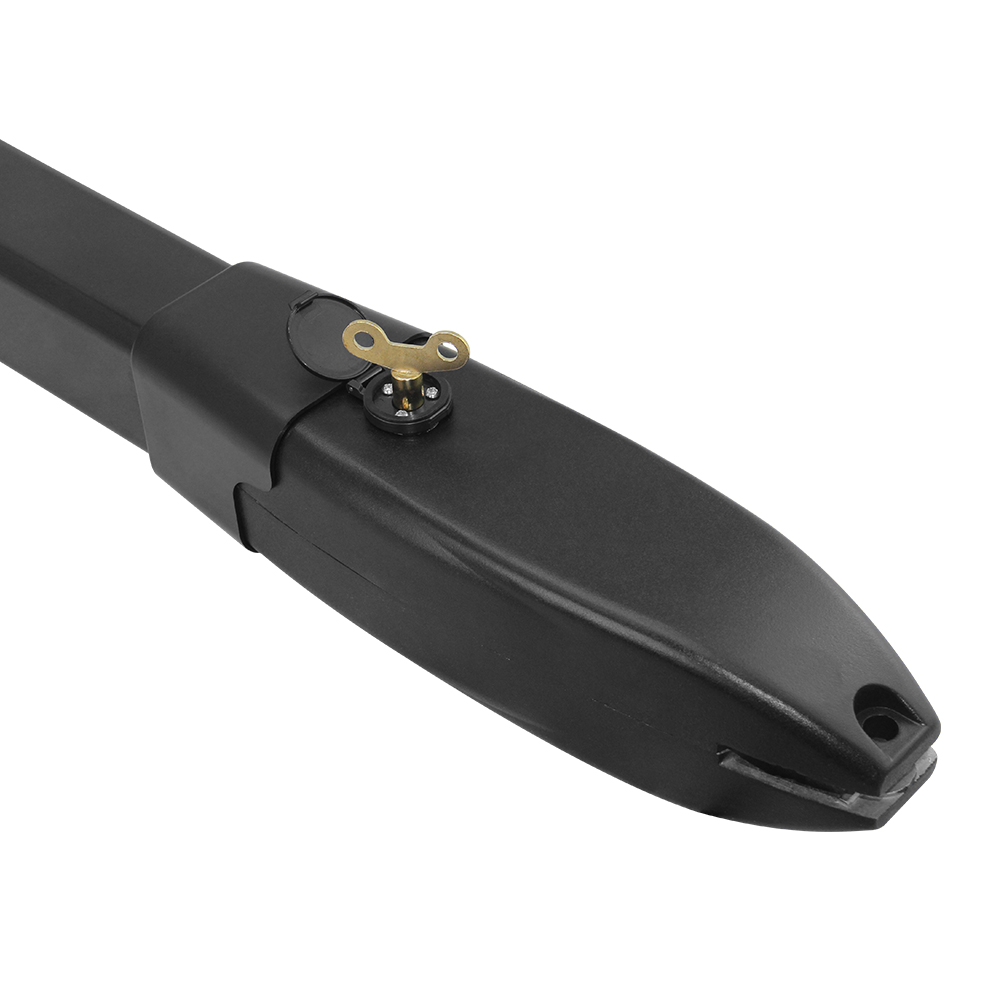

2.Clutch device for power failure,use a special key release clutch,operate the gate manually.

3.Stop working when gate meets obstacle.

4.Soft start and soft stop ,avoid some accidents

5.Copper motor and gear worm for stable performance and longer working life

6.Adjustable opening/closing interval between master and slave gate.

7.Adjusting residence sensitivity

8.24VDC Swing gate opener can work for solar power system and back up battery.





Standard set include:


2 x DC gate motor that are pre-wired with motor cables

2 x Override spanners

2 x Remote controls

1 x Control panel

2 x Post mounting bracket

2 x Gate mounting bracket

1 x Rubber Gate Stop

1 x Instruction manual


Specs


Rotaed motor power
60W
Max single leaf weight
300kg-350kg
Motor power
24VDC

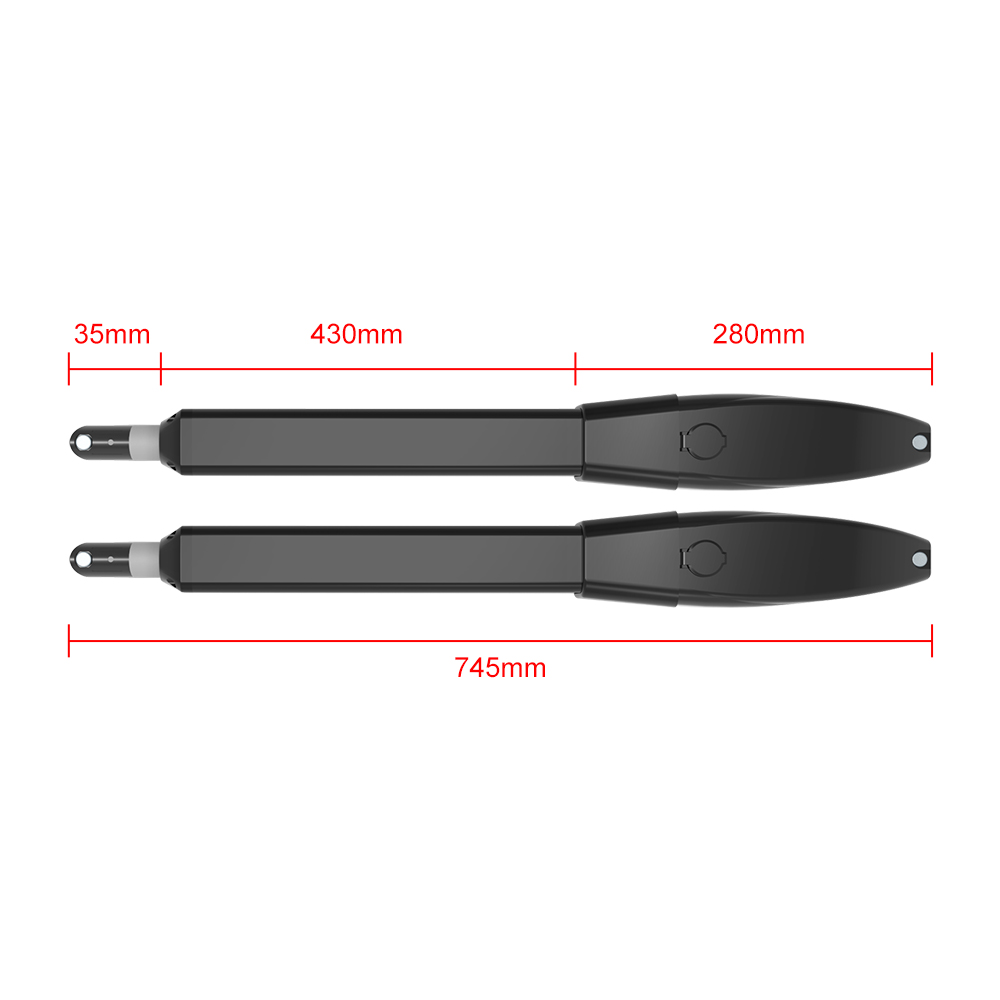

Max single leaf length
2.5m/3.5m
Working speed
2.4cm/s
Run travel
300mm/400mm
Protect classs
IP44
Working termperature
-25°C to +55°C
