2500KG 220V Heavy Duty Cycle Smooth Fast & Slow Speed Adjustable Smart Automatic Sliding Gate Opener

2500KG 220V Heavy Duty Cycle Smooth Fast & Slow Speed Adjustable Smart Automatic Sliding Gate Opener

Feature:

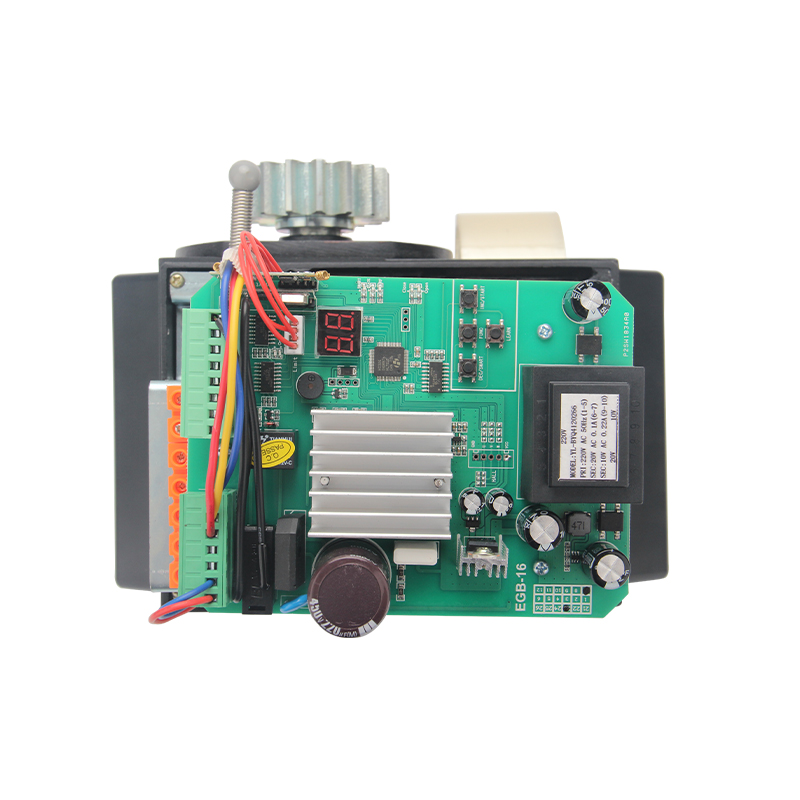

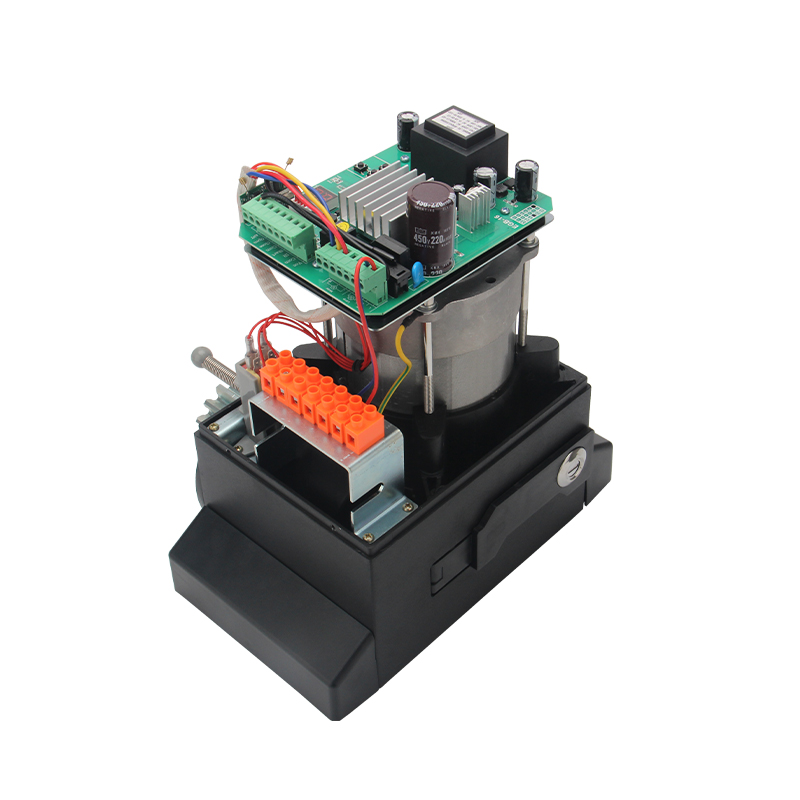

Smart Control Board
Feature:
Heavy Duty Cycle
Feature:
Smooth Fast & Slow Speed Adjustable

Overview

Heavy Duty Sliding Gate Opener




Innovative auto-close feature!
Featuring an auto-close time setting, this opener can be set to close in 12s, 24s, 36s and no automatic close function after it opens.
Support for adding more remote controls!
It comes with two remote controls. Conveniently, you can add 50 more remotes to control this system.
Easy to operate!
It’s the most user-friendly gate opener. The single button mode allows you to control the motor for the options OPENS/ STOP/CLOSE/ STOP. In case, the power is cut off; you can release the clutch and open the gate manually.
During the closing process, when the ray of the infra-red sensor is covered, your gate will open immediately to protect you and your property.
Built to last!
The aluminum abs cover and alloy base make this product durable and long-lasting. What’s more, when the motor keeps working more than 15 minutes and reach to 120-degree temperature, the motor stops itself to prevent any damage.
Pros
 * Works flawlessly for sliding gate
 * Easy to install, no need to hire electrician or welding
 * Convenient and simple to operate
 * Very quiet operation
 * Overheating protective
 * Mounting accessories included
 * Affordable price

Features

1.Manual release switch when power is cut off.
2.Meet the resistance to return function.
3.Motor gear self-locking.
4.External control or remote control.
5.Optional magnetic switch or spring switch.
6.Soft start to ensure a smooth start and smooth operation of the motor.

* Quick and easy installation thanks to the built in pre-wired control unit
* Anti-crushing protection is ensured by an electronic device directly controlling drive torque
* As the gear motor is non reversing, no electric locks need to be installed.
* In the event of a power cut, the rotation of the (key protected) release device makes it possible to open and close the gate manually
* Simplified "on display" programming

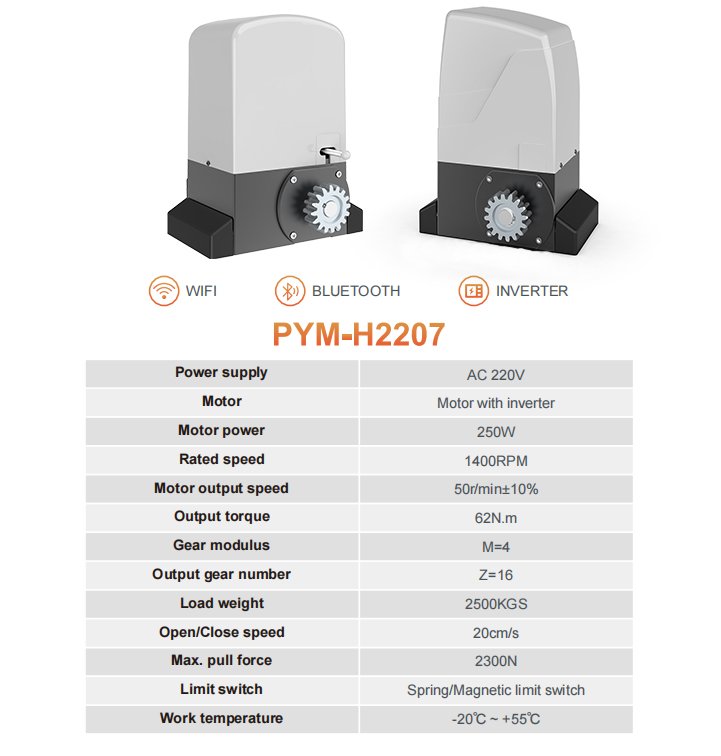

Specs

Model	PYM-H2207
Suitable gate weight	2500KG
Motor voltage	AC 220V±10% 50Hz
Limit switch	magnetic/spring
Base material	alloy aluminum
Rated power	250W
Output torque	62 N.m
Motor speed	1400RPM
Output speed	50r/min±10%
Open/Close Speed	20cm/s
Remote control Motor Output Speed	≤50meter
Output gear number	Z=16
Working temperature of motor	-20°C～ +55°C

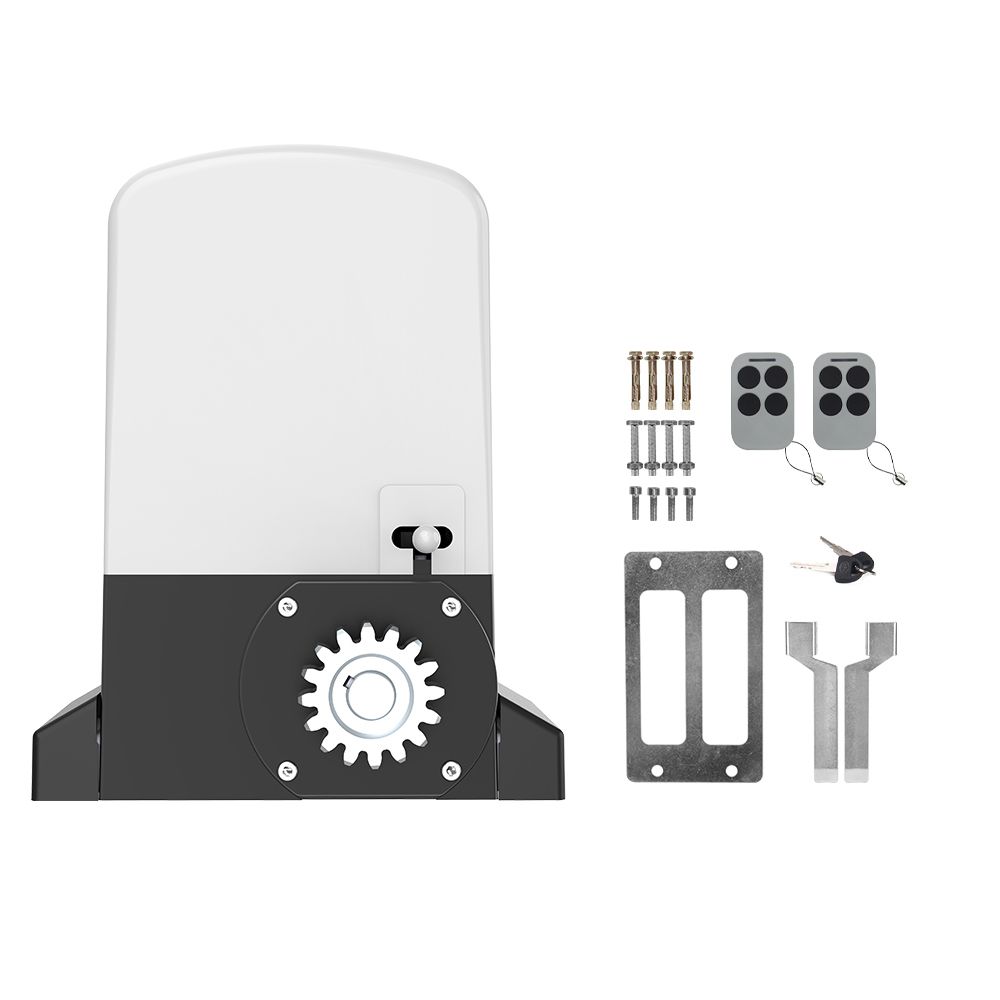

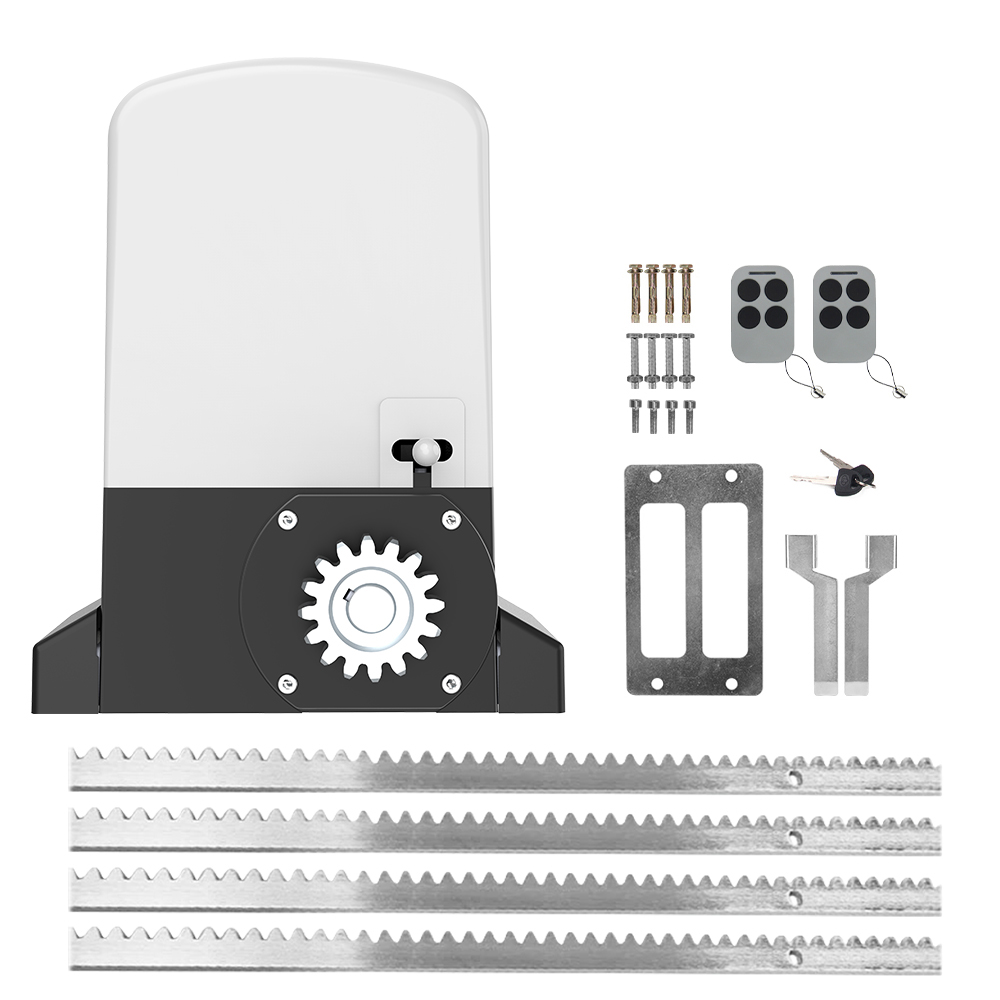

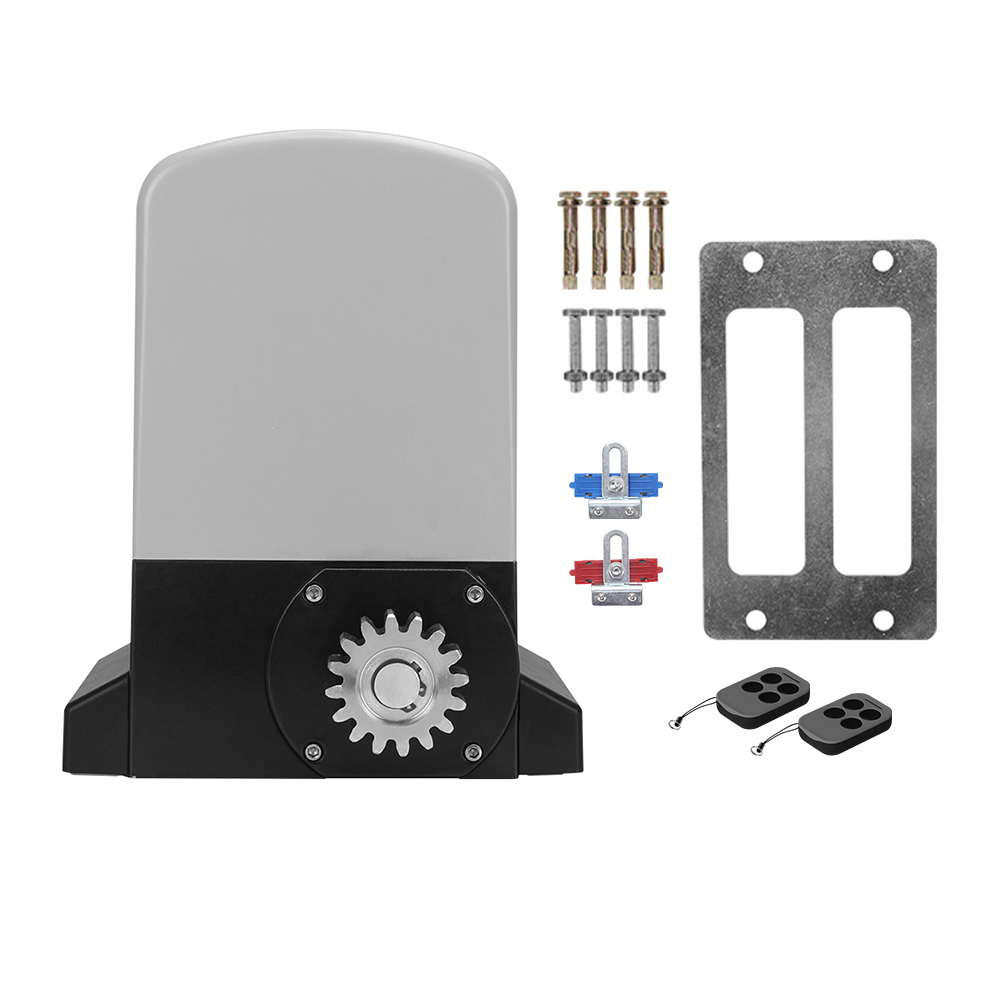

Complete kit

-1 x Motor with built in Control Panel
- 2 x Remote Controls
- 2 x Manual Override Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual
